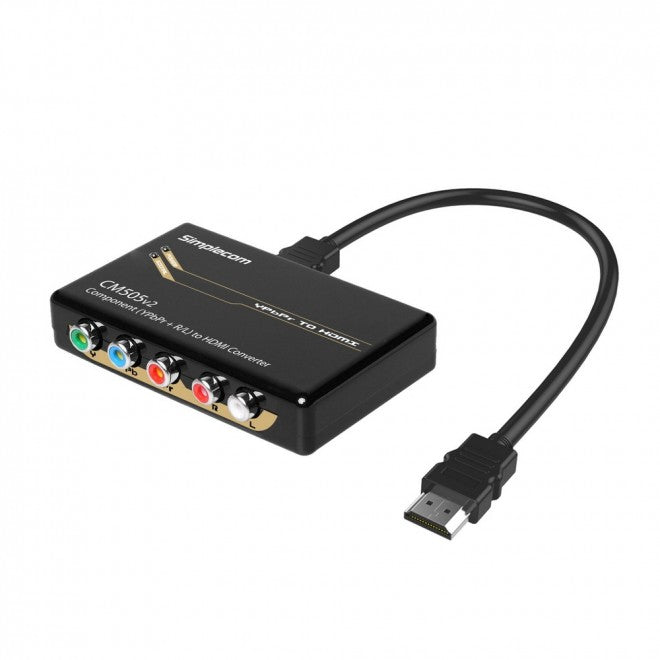

CM505v2 is a Component to HDMI converter lets you convert and combine analog component video and audio (YPbPr + Stereo R/L) into a single HDMI output. This Component to HDMI converter supports high definition video resolutions up to 1080p, providing easy and convenient way to connect legacy component video device to modern HDMI display. It can be applied for most component video devices, such as legacy STB, DVD players, game consoles, and more. Easy to use, plug and play, it supports 165MHz/1.65Gbps per channel (4.95Gbps all channels) bandwidth ensure no distortion of video or audio signal, and no lag in signal transmission.
Feature
Convert analog component video (YPbPr + Stereo R/L) to digital HDMI output Powered by USB, plug into either USB wall adapter or a nearby USB port on PC or TV Supports full range of component video resolutions: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p Support 165MHz/1.65Gbps per channel (4.95Gbps all channels) bandwidth Support 8bit per channel (24bit all channel) deep color Support uncompressed 2 channel audio such as LPCM Ideal for legacy component video devices such as STB, DVD players, game consoles
Specifications
Input: Component (YPbPr) + R/L Stereo
Output: HDMI DTV/HDTV: 480i/576i/480p/576p/720p/1080i/1080p
Video Amplifier Bandwidth: 1.65Gbps/165MHz per channel
Vertical Frequency Range: 50/60Hz Interlaced Resolutions (50&60Hz): 480i,576i,1080i
Progressive Resolutions (50&60Hz): 430p,576p,720p,1080p
Operating Temperature: 0°C to 70°C
Operating Humidity: 10% to 85% RH
Storage Temperature: -10°C to +80°C
Storage Humidity: 5% to 90% RH
Power Supply: USB
Power consumption (MAX): 5W
Package Contents
1x Component to HDMI converter
1x HDMI Lead
1x USB Power cable
1x USB Wall Adapter
Important Note
This converter is Component to HDMI one way only, doesn't work in reverse way
This adapter converts video format only, and doesn't change the resolution, the display screen has to support same resolution
