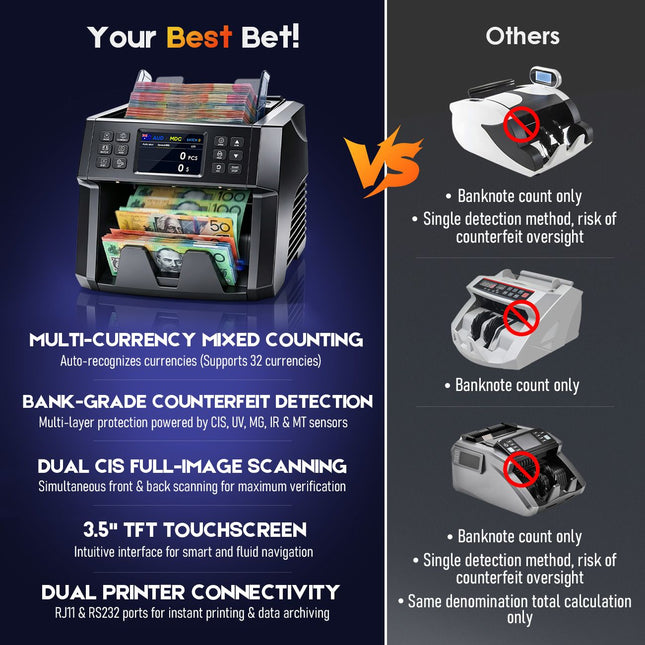

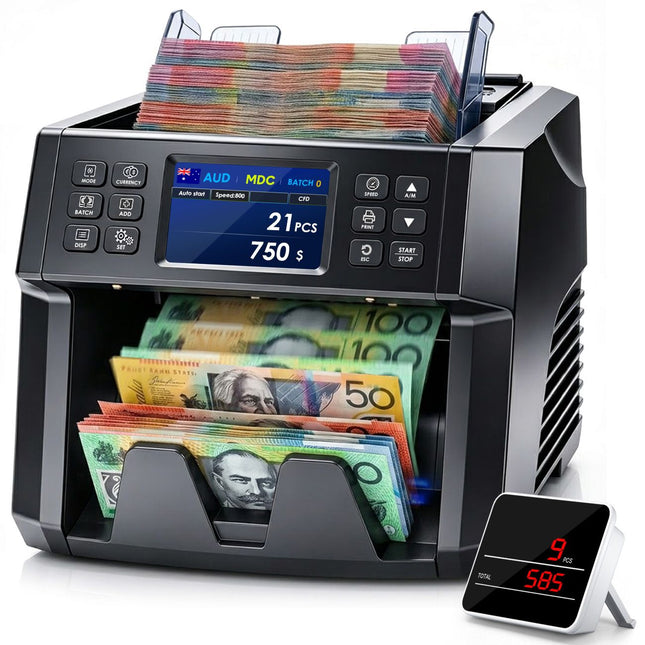

Dual CIS Money Counter with Counterfeit Detection
Designed for busy retail counters, businesses, hospitality venues, currency exchange services and other cash-handling environments, this professional money counter combines Dual CIS imaging, multi-layer counterfeit detection, mixed-value counting and serial number reading in one compact machine.
With two Contact Image Sensors, the machine scans both sides of each banknote during a single pass, while UV, MG, IR and MT detection provides multiple verification methods. It supports 14 built-in currencies, with AUD included for Australian cash handling, making it suitable for businesses that regularly process different currencies.
Key Features
Dual CIS Double-Sided ScanningTwo Contact Image Sensors capture both sides of each banknote during a single pass, helping the machine identify note characteristics and improve counting and verification accuracy.
Multi-Layer Counterfeit DetectionCombines Dual CIS, UV, MG, IR and MT (Metal Thread) detection to check different security features of supported banknotes. The machine can help identify irregular, suspicious or incorrectly processed notes and automatically send detected notes to the reject pocket for checking.
Mixed Value Counting – MDC ModePlace a mixed stack of supported denominations into the hopper and the machine can calculate the total cash value and denomination breakdown. This is particularly useful when counting mixed AUD $20, $50 and $100 notes or other supported denominations.
Single Denomination Counting – SDC ModeFor faster processing of one denomination, switch to SDC mode to count a stack of notes from the same currency and denomination efficiently.
Fast Counting PerformanceCNT mode supports counting speeds of up to 1,500 notes per minute, while MDC and SDC modes operate at approximately 800–1,200 notes per minute, depending on the selected setting, currency and note condition.
Serial Number ReadingThe machine can read and record serial numbers on supported currencies. This can be useful for cash reconciliation, internal records, transaction verification and audit purposes. Serial number availability may vary depending on currency and banknote type.
14 Built-In CurrenciesThe machine comes pre-loaded with 14 currencies:
AUD – Australian Dollar
USD – US Dollar
EUR – Euro
GBP – British Pound
NZD – New Zealand Dollar
CNY – Chinese Yuan
JPY – Japanese Yen
SGD – Singapore Dollar
INR – Indian Rupee
AED – UAE Dirham
RUB – Russian Ruble
BRL – Brazilian Real
MXN – Mexican Peso
KRW – South Korean Won
AUD Ready for Australian BusinessesWith AUD support built in, the machine is suitable for Australian retail stores, cafés, restaurants, market stalls, offices and other businesses that handle cash regularly. Firmware upgrades may be available for additional currency support. Please contact us for compatibility and upgrade information.
3.5" TFT Colour DisplayThe clear 3.5-inch TFT colour screen displays useful counting information such as denomination, total value, note count, reject information and available serial number data.
Large Hopper and Stacker CapacityThe 500-note hopper allows a substantial batch of notes to be loaded at once, while the 200-note stacker provides convenient collection during continuous counting.
Multiple Counting FunctionsSupports CNT, MDC, SDC, Batch, Add, Auto and Sort modes, providing flexibility for different cash-counting requirements.
Technical Specifications
Specification
Details
Detection System
Dual CIS + UV + MG + IR + MT
Counting Modes
CNT / MDC / SDC / Batch / Add / Auto / Sort
CNT Speed
800 / 1000 / 1200 / 1500 pcs/min
MDC / SDC Speed
800–1200 pcs/min
Built-In Currencies
14
Primary Currency
AUD
Display
3.5" TFT Colour Screen
Hopper Capacity
500 Notes
Stacker Capacity
200 Notes
Interfaces
USB / RS-232 / RJ11
Power Supply
AC 100–240V, 50–60Hz
Plug
AU 3-Pin
Product Dimensions
240 × 270 × 280 mm
Recommended Applications
Suitable for a wide range of cash-handling environments, including:
Retail stores
Supermarkets and convenience stores
Cafés and restaurants
Market stalls
Hospitality businesses
Currency exchange services
Offices
Cash-handling departments
Import and export businesses
Other businesses processing multiple currencies
Important Notes Best Practices
For reliable counting and detection performance:
Use banknotes that are reasonably flat, dry and free from excessive folds.
Remove staples, clips, adhesive tape and other foreign objects before counting.
Severely damaged, heavily soiled or taped notes may require manual inspection.
Clean the CIS sensors and feed rollers regularly using the supplied cleaning accessories.
Use the machine on a stable, level surface away from excessive vibration, direct sunlight and high humidity.
Counterfeit detection performance may vary depending on the currency, banknote series, condition and security features of individual notes.
Serial number reading is available only for supported currencies and note types.
Package Contents
1 × Dual CIS Money Counter
1 × AU Power Cord
1 × External Customer Display
1 × Cleaning Brush
1 × Wiping Cloth
1 × Calibration Strip
1 × User Manual
Customer Support
If you have questions about currency compatibility, firmware upgrades, operation or troubleshooting, please contact us before returning the product. We are happy to assist with setup and product support.
